PD Wall Charger Series 35W 45W 65W PD Wall Charger Series 35W 45W 65W
USB C PD45W Wall Charger
Output: 5.0Vdc, 3.0A; 9.0Vdc, 3.0A; 12.0Vdc, 3.0A; 15.0Vdc, 3.0A; 20.0Vdc, 2.25A;
2.DP-127G65W
2C1A(CE)

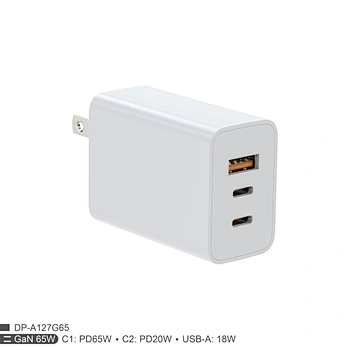

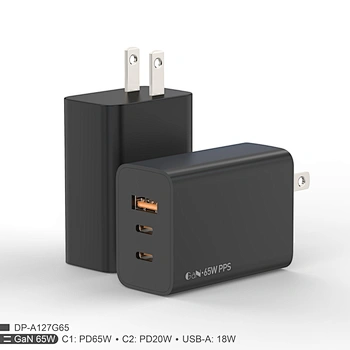

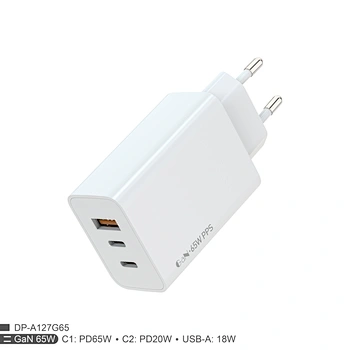

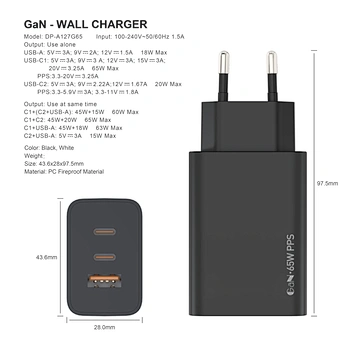

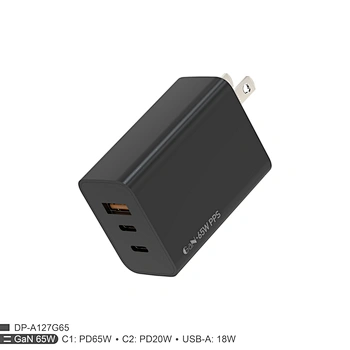

Product Name : pd65w wall charger
Material : PC fireproof material
Function : Charge for mobile phone
USB-C1 only：5.0V/3.0A;9.0V/3.0A;12.0V/3.0A;15.0V/3.0A;20.0V/3.25A (65W Max)
USB-C2 only：5.0V/3.0A;9.0V/2.22A;12.0V/1.67A (20W Max)
USB-A only：
5.0V/3.0A;9.0V/2.0A(18W Max)
C1+C2/A=45W+12W;
C2+A=15W
C1+C2+A=45W+15W (60W Max)
3.DP-A127P35(Non-standard)
PD35W Wall Charger 1C
Input：100-240V
Output：
5V/3A 9V/3A 12V/2.92A
15V/2.33A 20V/1.8A
PPS 45W
4.DP-A127G45(Non-standard)
PD45W Wall Charger 1C
Input：100-240V
Output：
DC 5V-3A; 9V/3A, 12V/3A，15V/3A, 20V/2.25A, PPS 45W

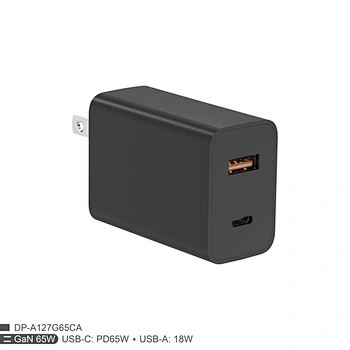

5.A127G45CA(no-standard)
USB-C1 only：5V/3A 9V/3A 12V/3A 15V/3A 20V/3.25A
USB-A only：
5.0V/3.0A;9.0V/2.0A(18W Max)
heDP-A127 series is a Samsung-style PD wall charger designed for fast, stable and safe charging. This series covers 35W, 45W and 65W power options, supporting USB-C single port, dual-port and multi-port configurations to meet different charging needs.
With compact housing, reliable performance and wide voltage compatibility, the DP-A127 PD wall charger is suitable for smartphones, tablets and USB-C laptops. It is widely used in retail, wholesale and OEM fast charger projectsworldwide.
Key Features
Samsung-style compact appearance
PD & PPS fast charging supported
Power options: 35W / 45W / 65W
USB-C single port, C+A and 2C1A configurations
Fireproof PC material with stable heat control
Certified and non-certified versions available
Available Configurations
45W USB-C PD Wall Charger (Certified)
Single USB-C output, designed for markets requiring compliance. Suitable for phones, tablets and lightweight laptops with stable PD fast charging performance.
65W PD Wall Charger (2C1A,Certified)
35W USB-C PD Wall Charger (Non-Certified)
Cost-effective fast charging solution for smartphones and tablets, supporting PD and PPS protocols with compact size.
45W USB-C PD Wall Charger (Non-Certified)
High-power single USB-C output with full PD and PPS support, ideal for flexible market requirements.
45W USB-C & USB-A Wall Charger
Dual-port configuration supporting both new USB-C devices and traditional USB-A products.
Applications
- Smartphones & tablets
- USB-C laptops
- Home and office charging
- Travel and retail fast charging solutions
OEM & Manufacturing Capability
Dipinle is a professional fast charger manufacturer in Shenzhen with over 20 years of OEM experience.
We support:
Logo & branding customization
Plug and packaging customization
Stable mass production
Strict quality control system
The DP-A127 series is designed to support long-term OEM and wholesale cooperation.
Technical Specifications
Power range: 35W / 45W / 65W
Ports: USB-C / USB-C + USB-A / 2C1A
Input: 100–240V
Material: PC fireproof material
Fast charging: PD & PPS supported
